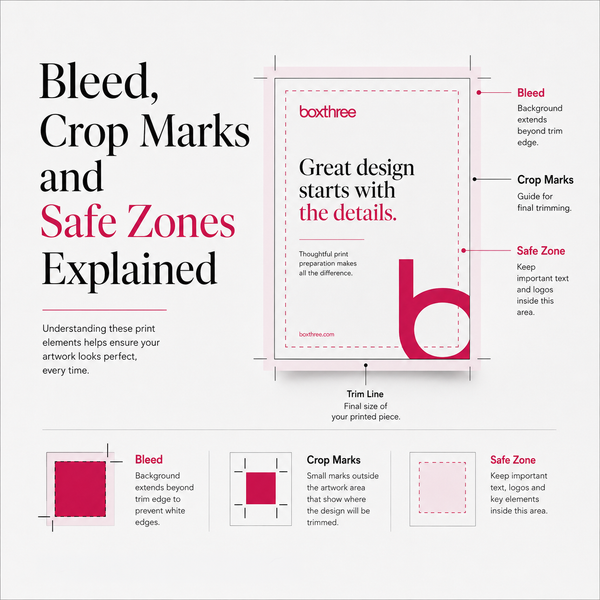

Bleed, Crop Marks and Safe Zones Explained

You have finished your design. It looks perfect on screen. You send it to the printer — and then you get a phone call asking about bleed. Or crop marks. Or safe zones. Or all three at once.

These terms confuse a lot of people who are new to print. But they are not complicated. Understanding them properly will save you time, money and the frustration of receiving a finished print job that looks slightly different from what you expected.

What Is Bleed?

When a document is printed and trimmed to its final size, cutting machines are not perfectly precise — they can vary by a millimetre or two. Bleed solves this problem by extending any background colours, images or design elements that run to the edge of the page beyond the final trim size, typically by 3mm on all sides.

If you do not add bleed, and the cutting machine drifts even slightly, you will see a thin white line at the edge of your printed piece. It looks unprofessional and it is entirely avoidable.

What Are Crop Marks?

Crop marks (also called trim marks) are the small lines printed outside the edge of the design that tell the cutting machine exactly where to cut. They mark the four corners of the final trimmed size.

Most design software adds crop marks automatically when you export for print. If you are using a consumer tool that does not support bleed and crop marks, it is worth flagging this with your printer before you submit — they can advise on the best way to handle it.

What Is the Safe Zone?

The safe zone is the inverse of bleed: it is a margin inside the final trim size — again, typically 4mm — within which all important content (text, logos, key images) should be contained. This protects against the same cutting variance: if the machine cuts slightly inside the intended line, nothing critical gets removed.

Text or logos that run right to the edge of the design with no safe zone margin are at genuine risk. Even a small amount of cut-off on a headline or a logo corner looks amateurish and undermines an otherwise well-produced piece.

How to Set Up Your Artwork Correctly

The quickest way to get this right every time: in your design application, set up your artboard at the final trim size, extend any edge-to-edge elements 3mm beyond that size on each side, and keep all critical content at least 3mm inside the trim edge. Export as a high-resolution PDF with bleed and crop marks included.

If you are unsure or working in software that does not handle bleed natively, speak to us and we will advise before it goes to print. A two-minute conversation at this stage is much cheaper than a reprint.
